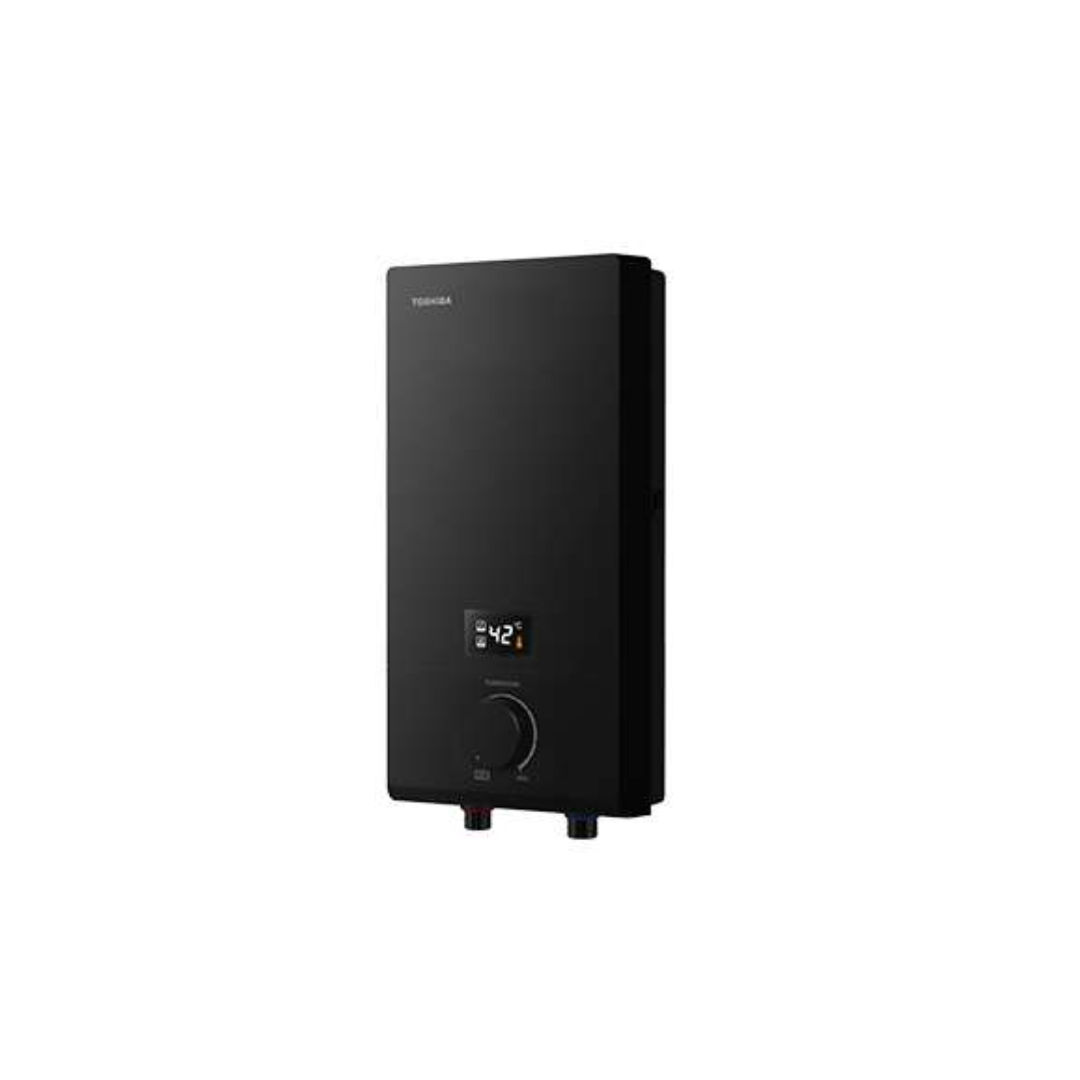

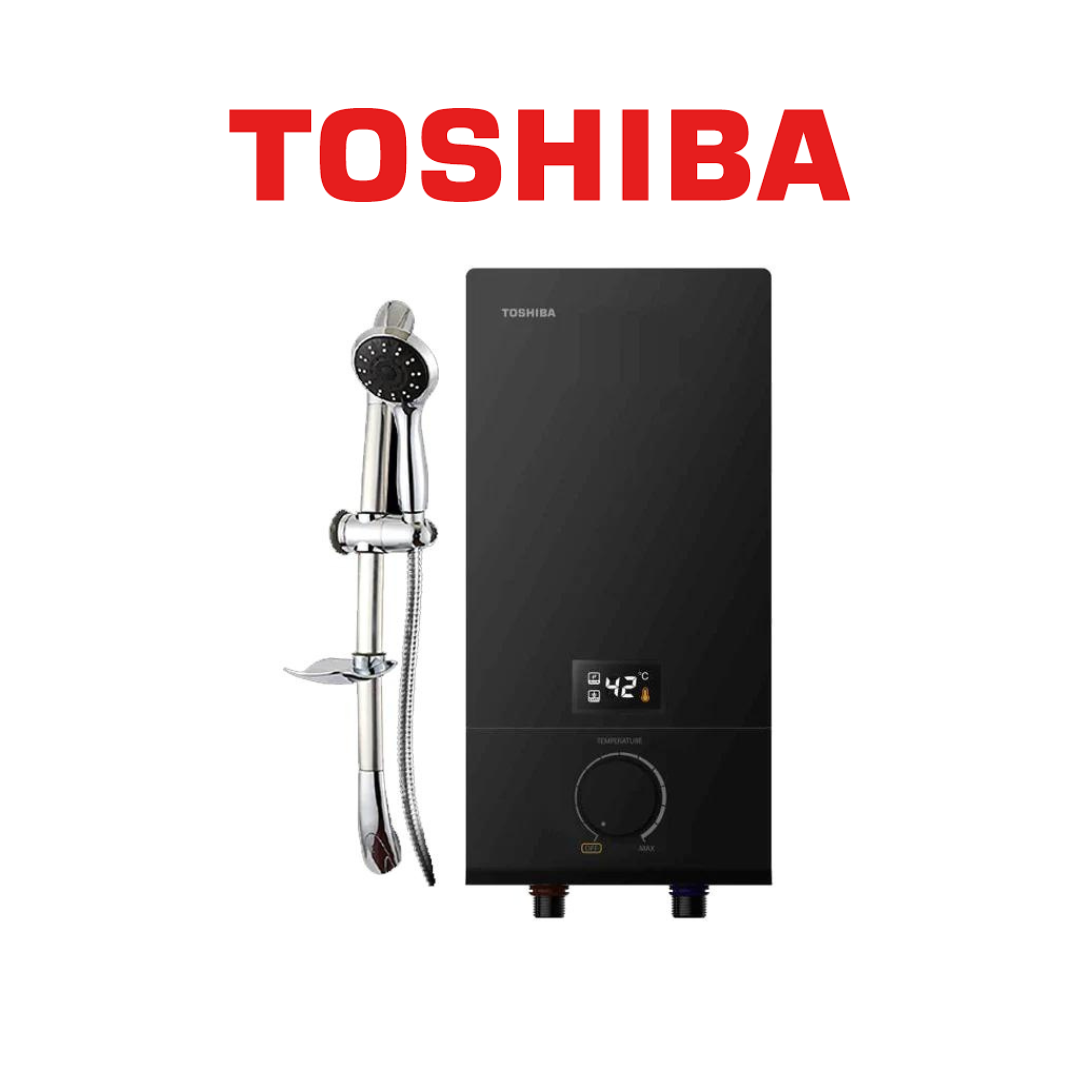

TOSHIBA DSK33ES5SB BLACK INSTANT WATER HEATER WITH HANDSHOWER SET

• Auto Test
• Built-in ELCB
• Line Fault indicator
• NTC Thermal Cut-Out
• Built-in auto flow sensor
• Double Copper Heating Element
• Splash-proof IP25 Standard
• Stepless Electronic Temperature Control
• 5 spray Pattern showerhead

Specification

APPLICATION VOLTAGE: 230V±10%，Extreme conditions 260V

APPLICABLE AIR HUMIDITY: 50-98%RH

DISCONNECT MODE: Double Disconnection

STRONG CONNECTION: Japan JST Connector

POWER SUPPLY VOLTAGE & FREQUENCY (V/HZ): 230V~,1Ph 50Hz

POWER COMSUPTION: 3300W

RATED CURRENT: 14.3A

MINIMUM INLET PRESSURE: 0.03MPa

MAXIMUM INLET PRESSURE: 0.3MPa

MAX OUTLET WATER TEMPERATURE(°C): 48℃

CONSTANT TEMPERATURE PERFORMANCE: ±2℃

TANK/HEATING ELEMENT COMPONENTS LIFE TIME: 6 Years

RATED PRESSURE: 0 MPa

MINIMUM FLOW RATE: 1.5L/min

OPERATING CONDITION: Open Type

PUMP: No

APPLICABLE WATER PRESSURE: 0.03～0.3Mpa

FEED WATER TEMPERATURE: 5～40℃

APPLICABLE FEED WATER: Tap water, TDS≤450mg/L

Material

HEATING TUBE MATERIAL: Copper

WATER TANK MATERIAL: PA66+30%GF

FRONT HOUSING MATERIALS(ABS/PP/HIPS): ABS

BACK BASE MATERIALS (ABS/PP/HIPS): ABS

THE INLET / OUTLET PIPE MATERIALS: PA66+30%GF

WATER PROOF CLASS: IP25

PROTECTION CLASS: Class I

Dimension

PRODUCT DIMENSIONS（MM）: 200*400*97 mm

PACKING DIMENSIONS（MM）: 660*260*125 mm

OUTER PACKING DIMENSIONS（MM）: 675*520*280 mm

NUMBER OF OUTER PACKING BOX: 4

NET WEIGHT(KG): 1.95

2 YEARS WARRANTY AGAINST MANUFACTURING DEFECTS BY TOSHIBA
